42JXE100K.42BLS 42mm BLDC Planetary Gear Reducing Motor 12 volt 24 volt 36 volt 20 watt 30 watt 50 watt 100 watt

Brand Name : SMART AUTOMATION

Model Number : OEM

Certification : CE

Place of Origin : Changzhou CHINA

Supply Ability : 10000 Piece/Pieces per Month

Packaging Details : To be negotiated

MOQ : 50

Price : To be negotiated

Delivery Time : To be negotiated

Payment Terms : D/A, T/T, L/C,D/P

Warranty : 3years

Port : Shanghai

Current / Phase : customized for different power

Speed(RPM) : customed

Continuous Current(A) : customed

Usage : Car, Electric Bicycle, FAN, Home Appliance, MACHINE

Type : Micro Motor

Torque : customed

Construction : Brushless

Commutation : Brushless

Protect Feature : Drip-proof

Contact Now

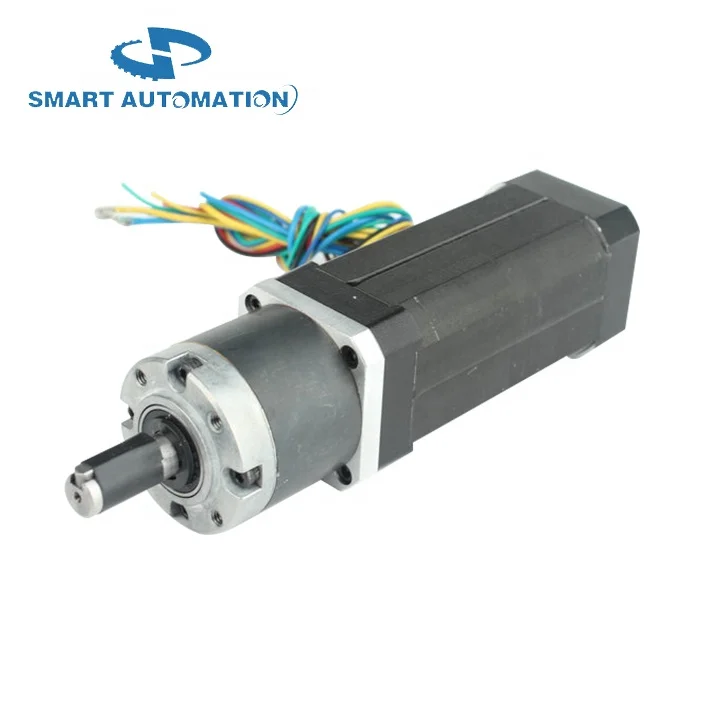

42JXE100K.42BLS 42mm bldc gearmotor with planetary gear reduction Helical Gear Low Noise Small Backlash upto 100w

42JXE100K.42BLS Brushless Dc Planetary Gear Motor

42BLS Technique Specification

Model 42BLS01A 42BLS02A 42BLS03A 42BLS04A
Number of phase 3
Number of pole 8
Voltage V 24v (Option for 12v up to 60vdc)
No load speed rpm 5000 5000 5000 5000
Rated torque Nm 0.063 0.125 0.185 0.25
Rated Speed rpm 4000 4000 4000 4000
Rated Current A 1.7 3.5 4.6 6
Rated Power W 26 52 77 104
Weight Kg 0.3 0.45 0.65 0.75
Length mm 41 61 81 100

Planetary Gearbox Specifications Gearbox Model: 42JXE100K

Ring material E :Metal
Bearing at output Ball bearings
Max. Radial load(10mm from flange) ≤80N
Max. shaft axial load ≤30N
Radial play of shaft (near to flange) ≤0.06mm
Axial play of shaft ≤0.3mm
Backlash at no-load) ≤2.5°
Shaft press fit force, max ≤150N

Reduction ratio Rated tolerance torque Max momentary tolerance torque Efficiency L(mm) Weight(g)
1/3.7 1/5.2 1.0N.m 3.0N.m 90% 31.5±0.5 244
1/14 1/19 1/27 14.0N.m 12N.m 81% 42.1±0.5 314
1/51 1/71 1/100 1/139 8.0N.m 25N.m 73% 52.5±0.5 433
1/182 1/219 1/254 1/306 1/354 1/427 1/495 1/596 10N.m 30N.m 66% 62.9±0.5 519

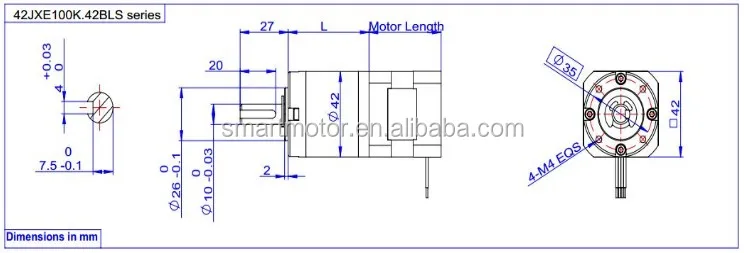

Drawing

42JXE100K.42BLS 42mm BLDC Planetary Gear Reducing Motor 12 volt 24 volt 36 volt 20 watt 30 watt 50 watt 100 watt

42JXE100K.42BLS 42mm BLDC Planetary Gear Reducing Motor 12 volt 24 volt 36 volt 20 watt 30 watt 50 watt 100 watt

ABOVE MODELS ARE ONLY TYPICAL MODELS

WE MAKE CUSTOMED VOLTAGE, WINDING, SHAFT, MOUNTING,

AND MOTOR ADDERS FOR ENCODER, GEARBOX, BRAKE...ETC

..

42JXE100K.42BLS 42mm BLDC Planetary Gear Reducing Motor 12 volt 24 volt 36 volt 20 watt 30 watt 50 watt 100 watt
